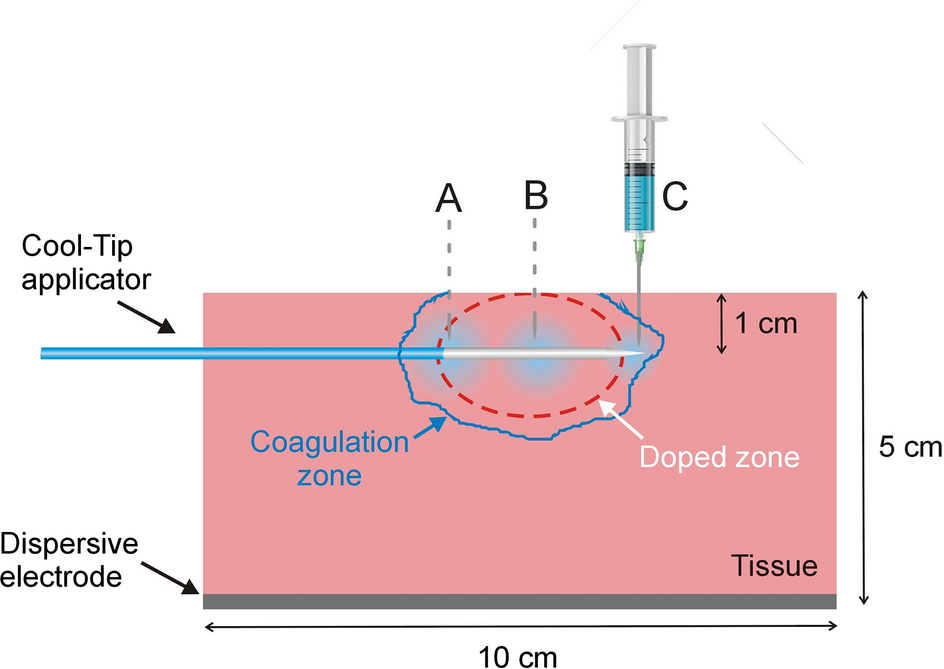

Fig. 7

Cross-sectional view of tissue sample used in the ex vivo experiments. The ablation electrode was inserted 1 cm below the tissue surface. A, B, and C indicate the dopant infusion points (saline solution or Au colloidal). Solid blue line would represent the contour of the coagulation zone, while dashed red line would represent the contour of the doped zone
